Trailers for 18-40 HP tractors

with hydraulic tipping

RL1000H

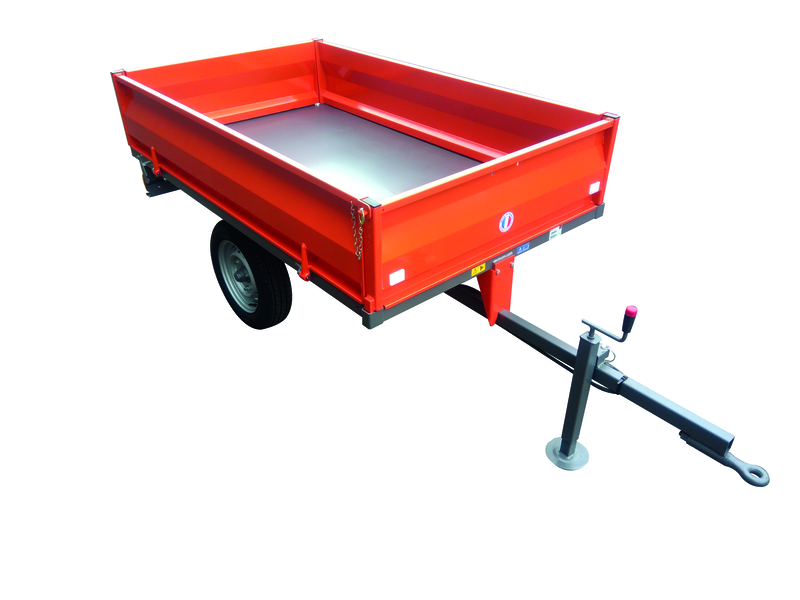

Designed for compact tractors up to 30 hp, these trailers based on farming models have a compact and very robust chassis. They are also equipped with a reversible drawbar and tail lights for use on the public highway. They are fitted with a hydraulic cylinder used to tip the box from the tractor seat and can be fitted with a hydraulic manual pump for tipping if the tractor does not have a hydraulic distributor.

Specifications

  • 1000 kg payload
  • Drawbar with height-adjustable ring hitch

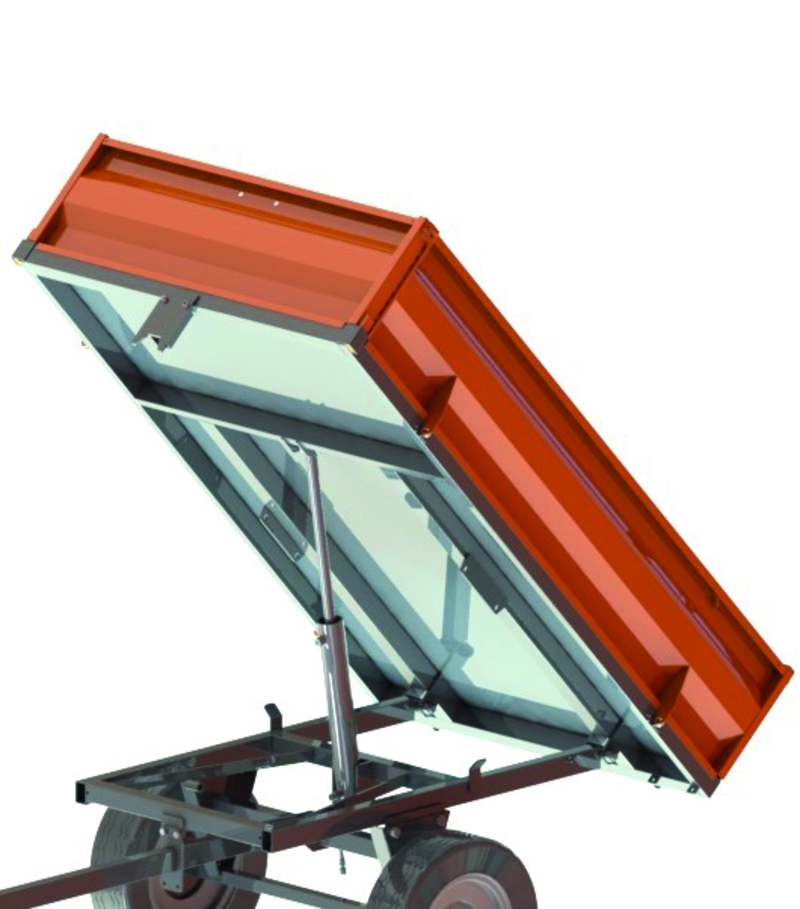

  • Hydraulic tipping box

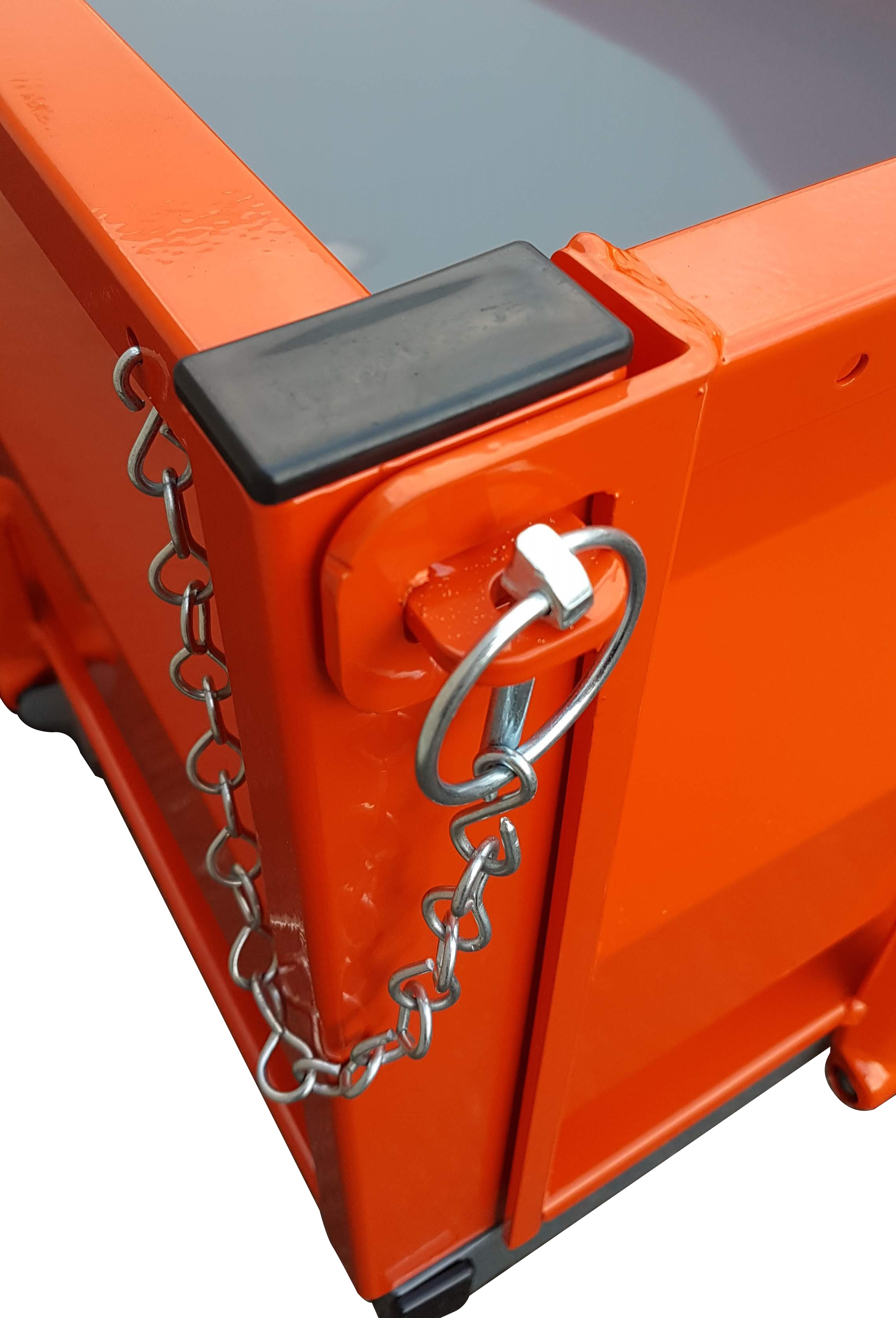

  • Folding and removable dropside boards
  • Lever-operated height-adjustable stand
  • Tail lights

information

Useful power (hp) 18-40

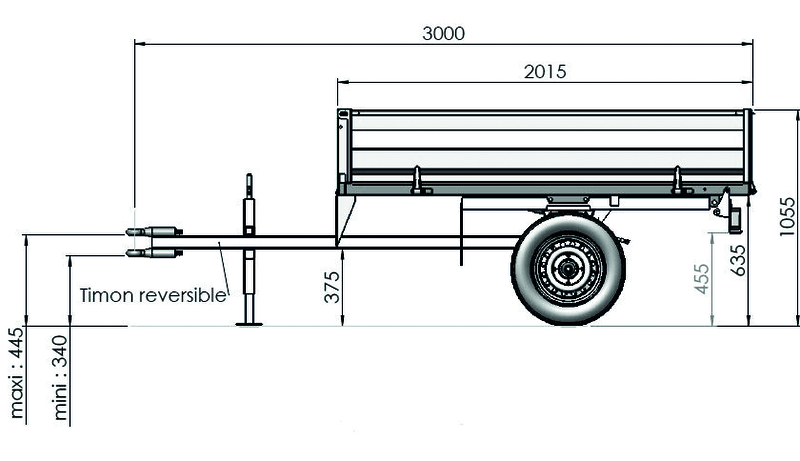

Inside dimension (cm) 194 x 114 x 35
Weight (Kg) 215
PTAC (Kg) 1215
